Full carbon Frame:

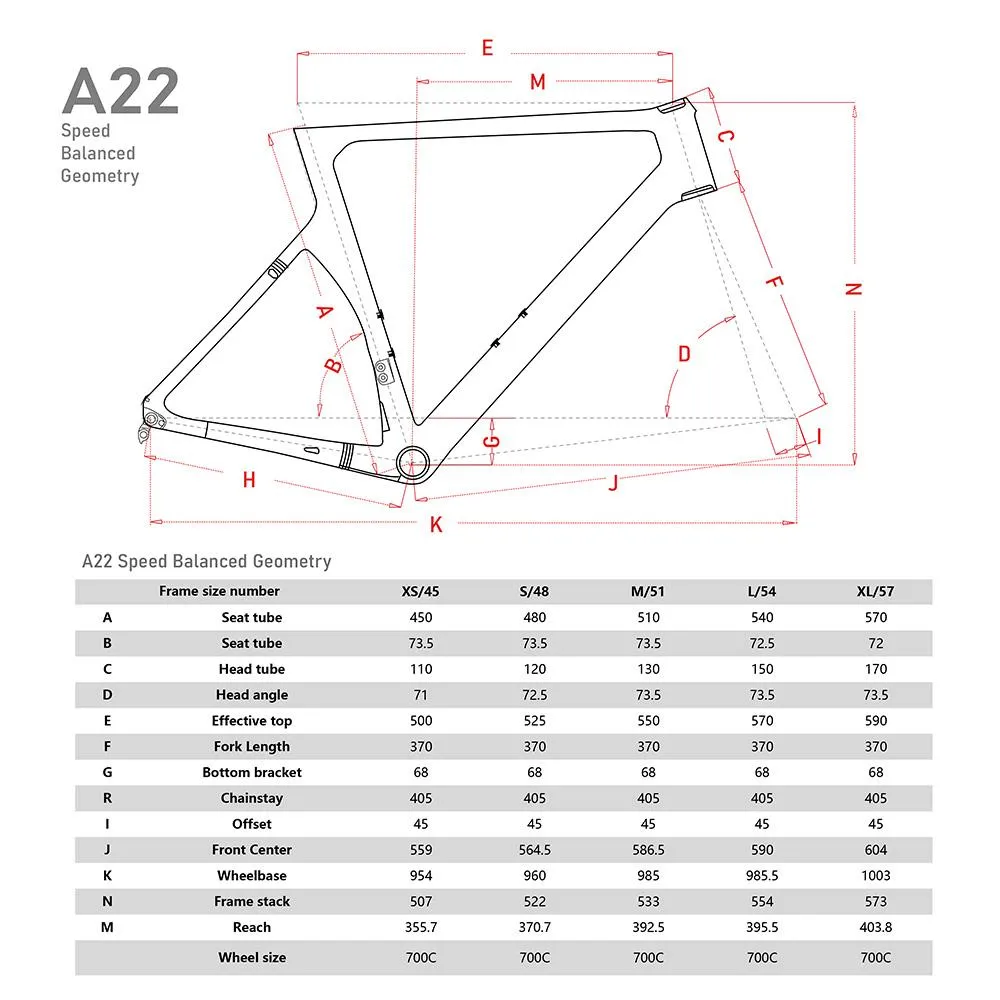

This bike is equipped with produced by ican. The frame size is 52cm. If you want other size frame to fit your height，please choose other size frame.

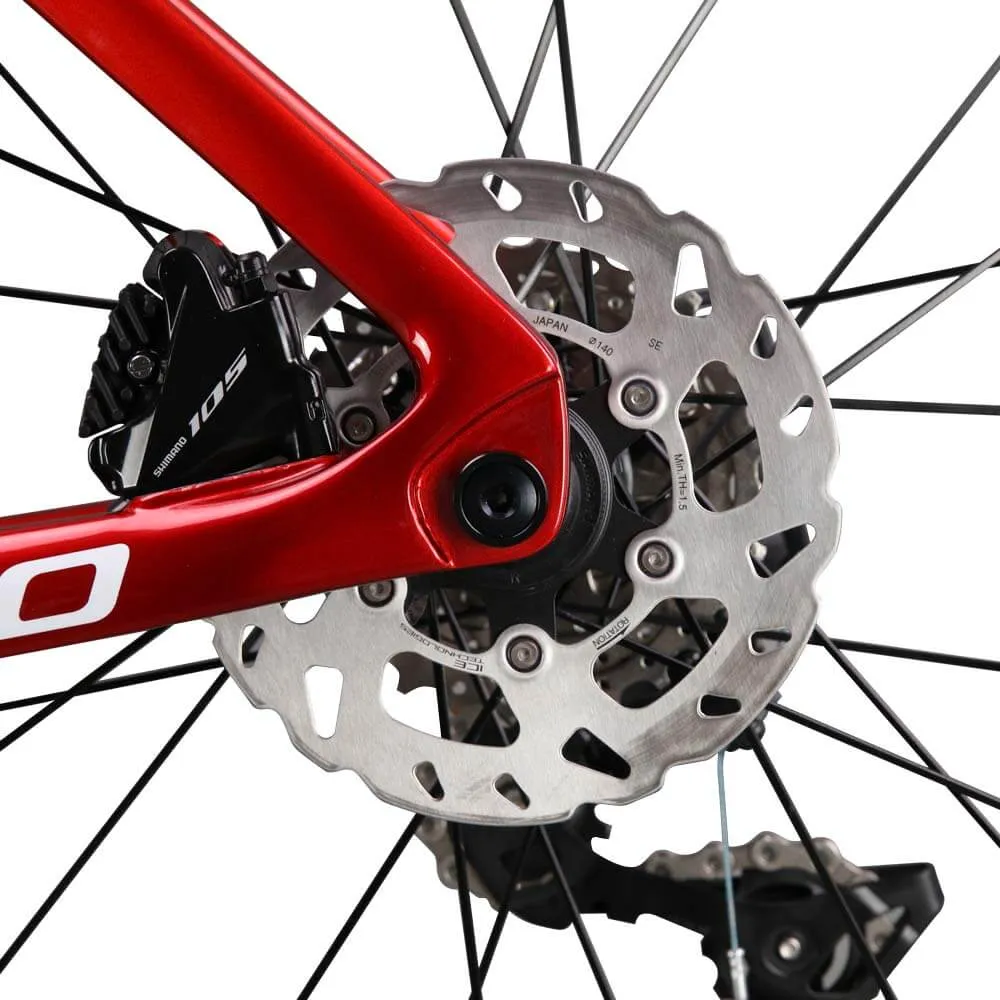

The 52cm carbon frame weight is 1050 _50g.The rear spacing of the frame is 142*12mm,which use the 140mm flat mount.

Tire

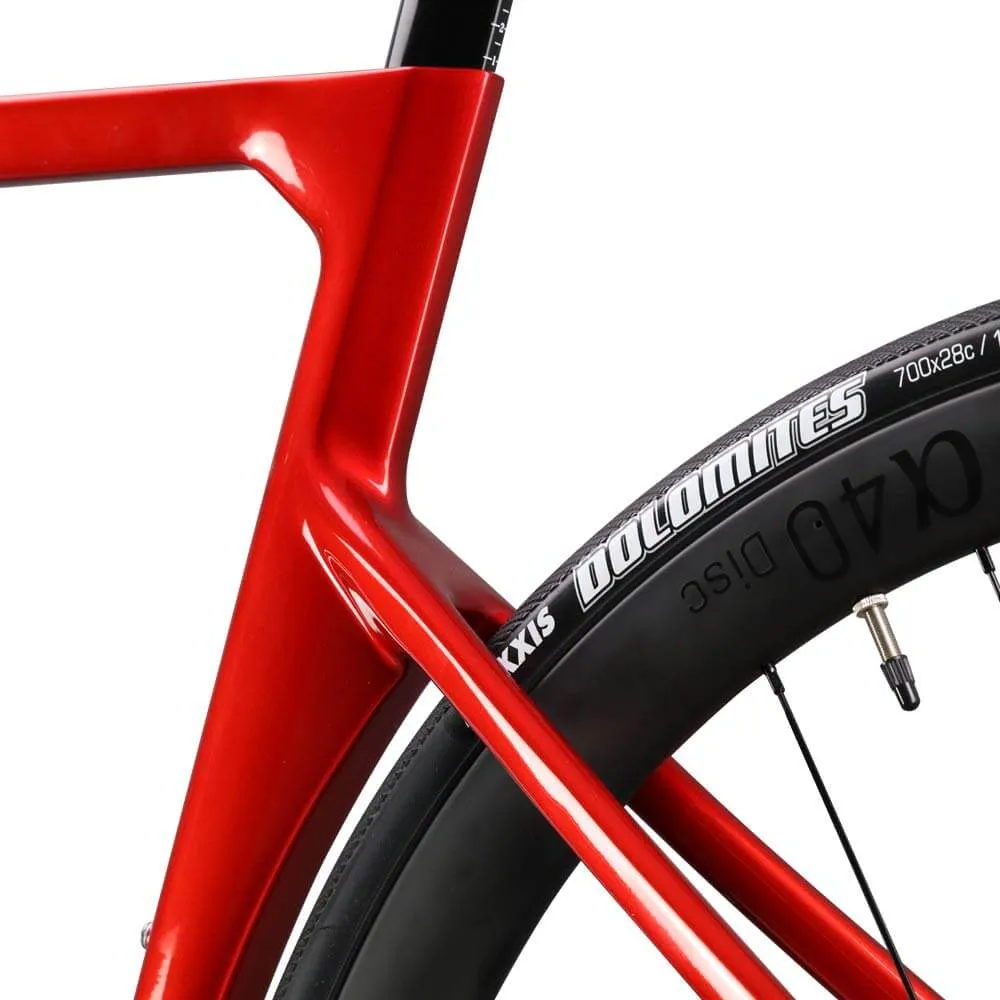

We fit the 28mm MAXXIS DOLOMITES tire for the bike,The max psi is 120 psi.

If you want to replace the other brand tire for yourself,please choose the 25mm tire to assble. 28mm tire only suitable for maxxis brand.

Recommended Tire：25mm.

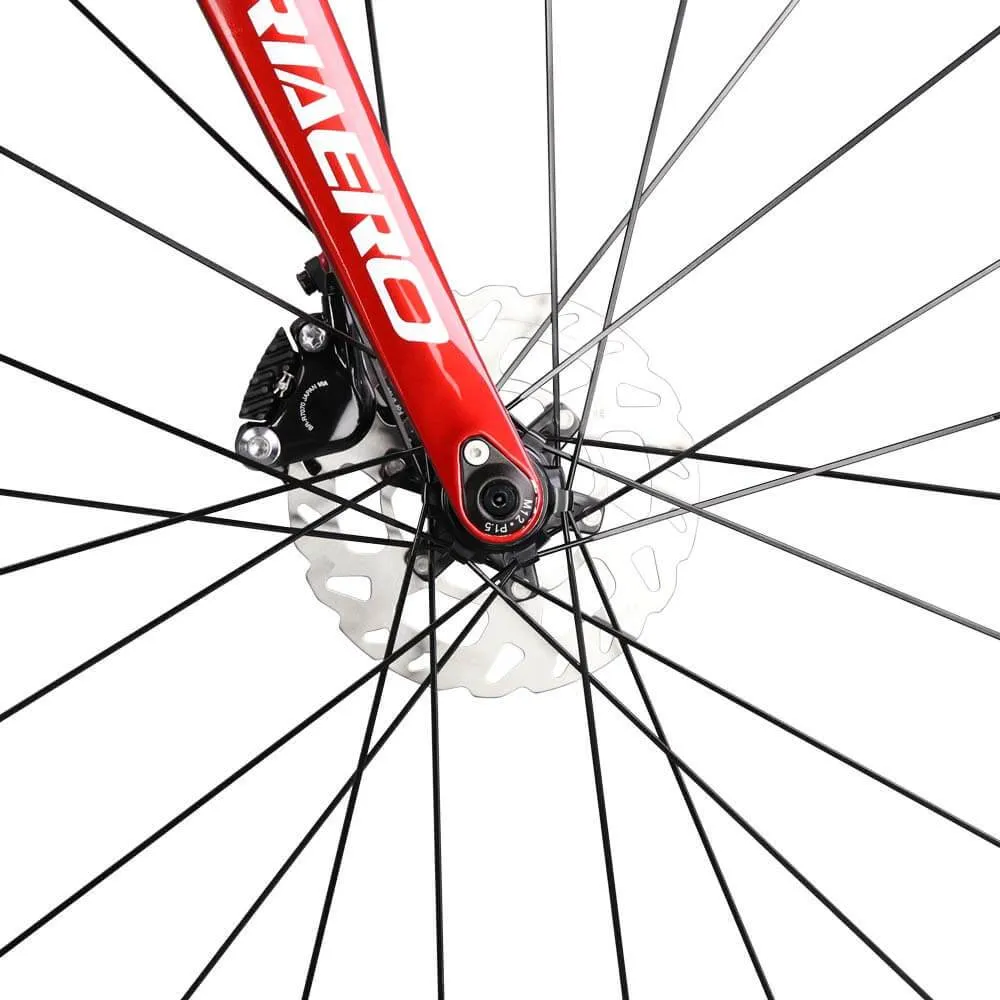

Front fork :

We use the red carbon rigid fork.The Front fork spacing is 100*12mm.

Carbon Wheelset:

We use the  as the parts of carbon bike A22.

The wheels has the 40mm depth，25mm width carbon rim，which also support the tubeless ready tire.

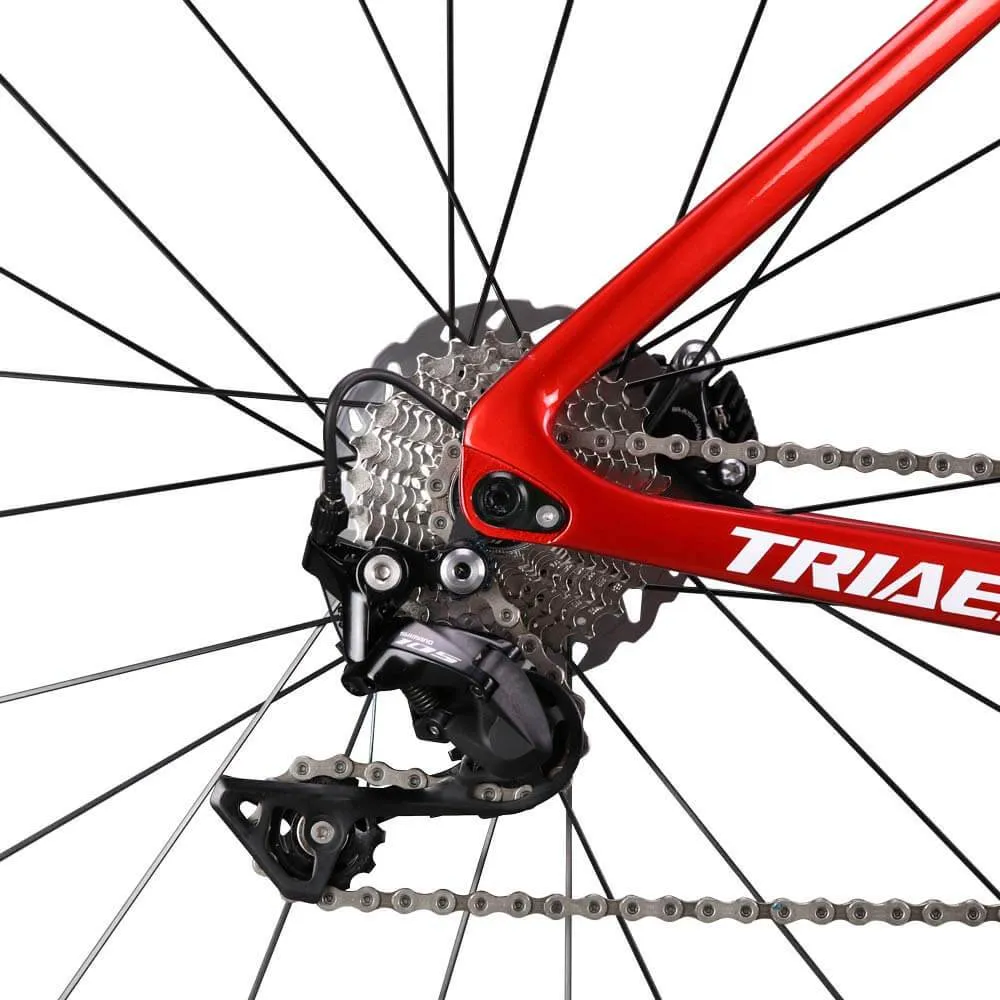

Groupset:

DRIVERTAIN----SHIMANO R7020

Groupsets is the core component of the bike, and we use the trusted big brand shimano groupsets: SHIMANO R7020.

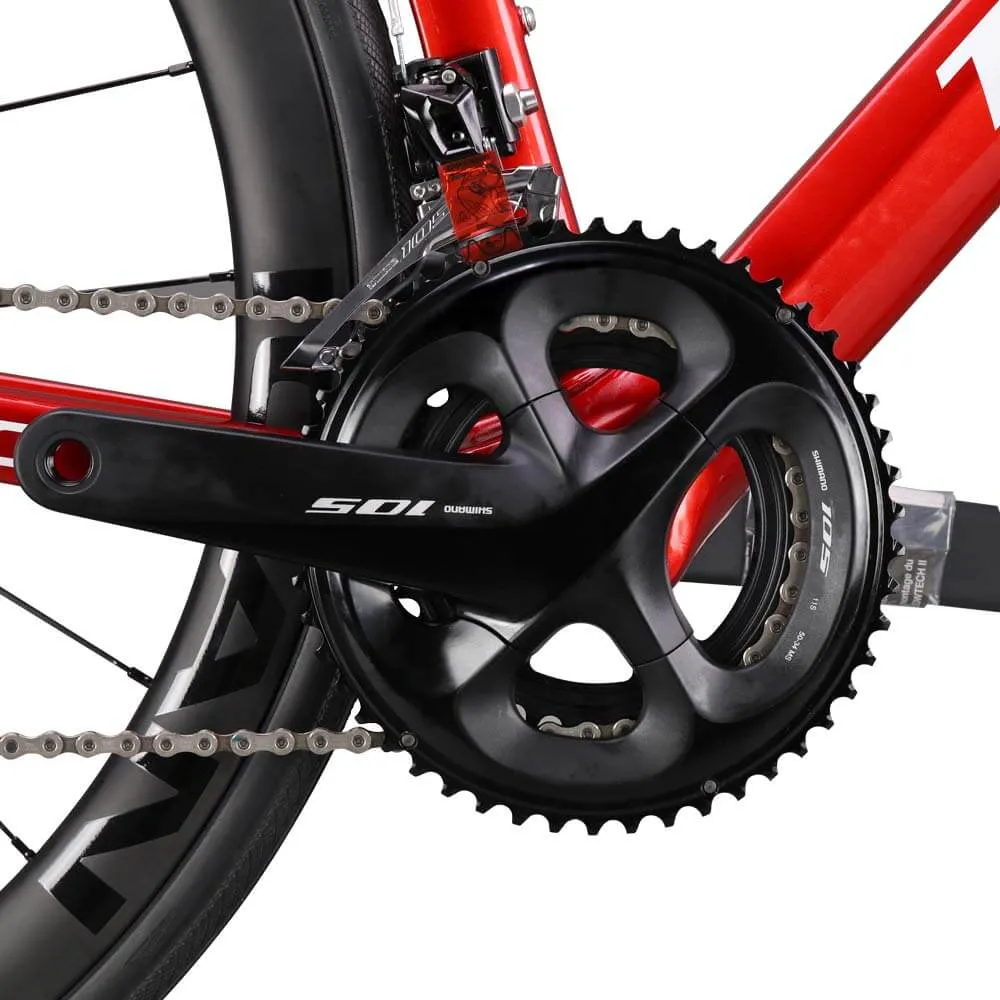

Crank :

172.5mm SHIMANO 105 FC R7000 crank balances weight and efficiency without sacrificing stiffness. Its wider gear pitch increases clearance with small gearings on modern 135mm O.L.D. frames.

Others:

Headset: 1-1/2'' to 1-1/2''

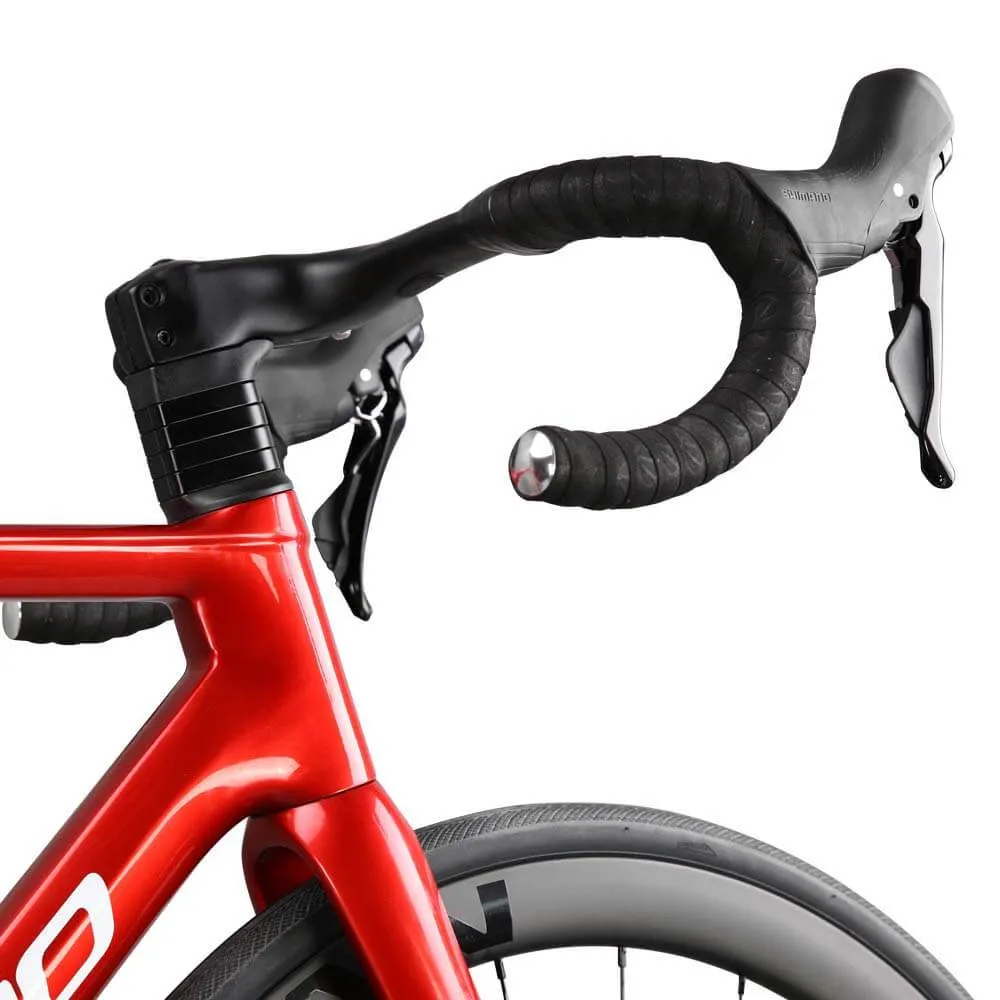

Stem: Carbon ST05-90mm

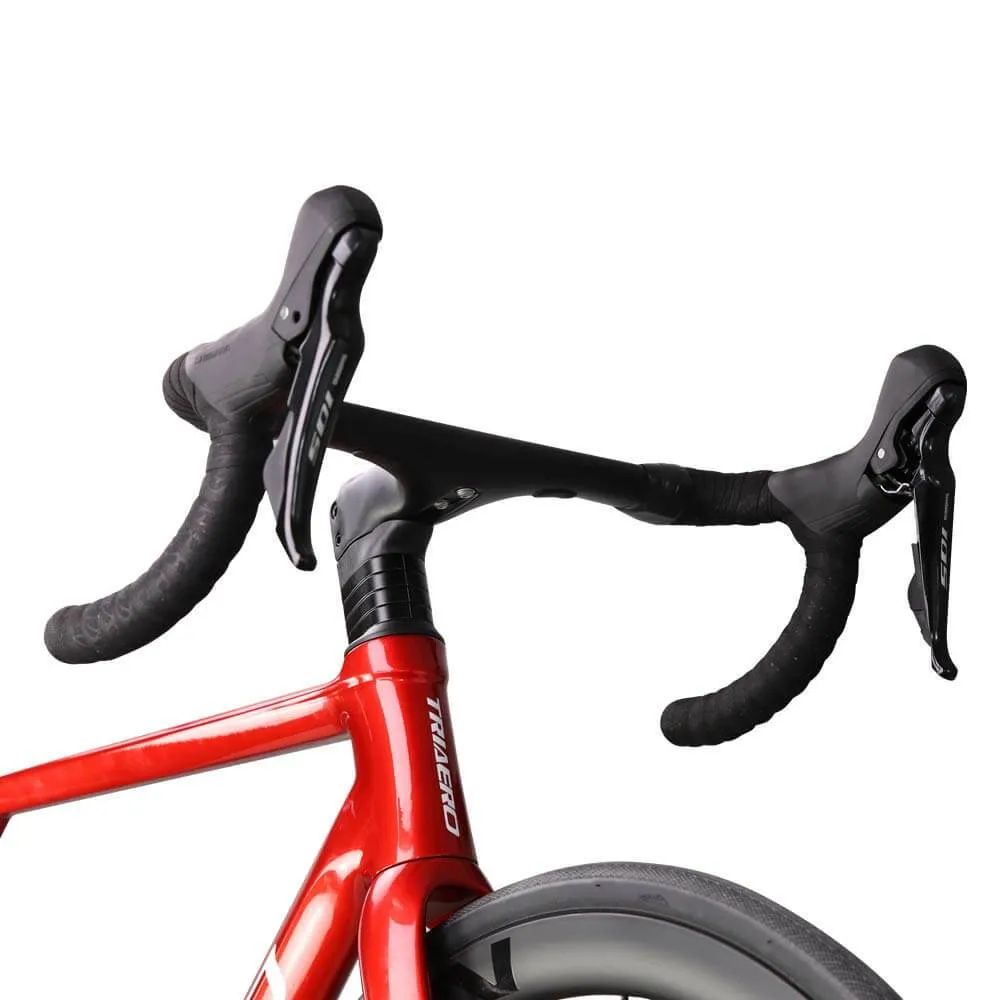

Handlebar: HB005-420mm

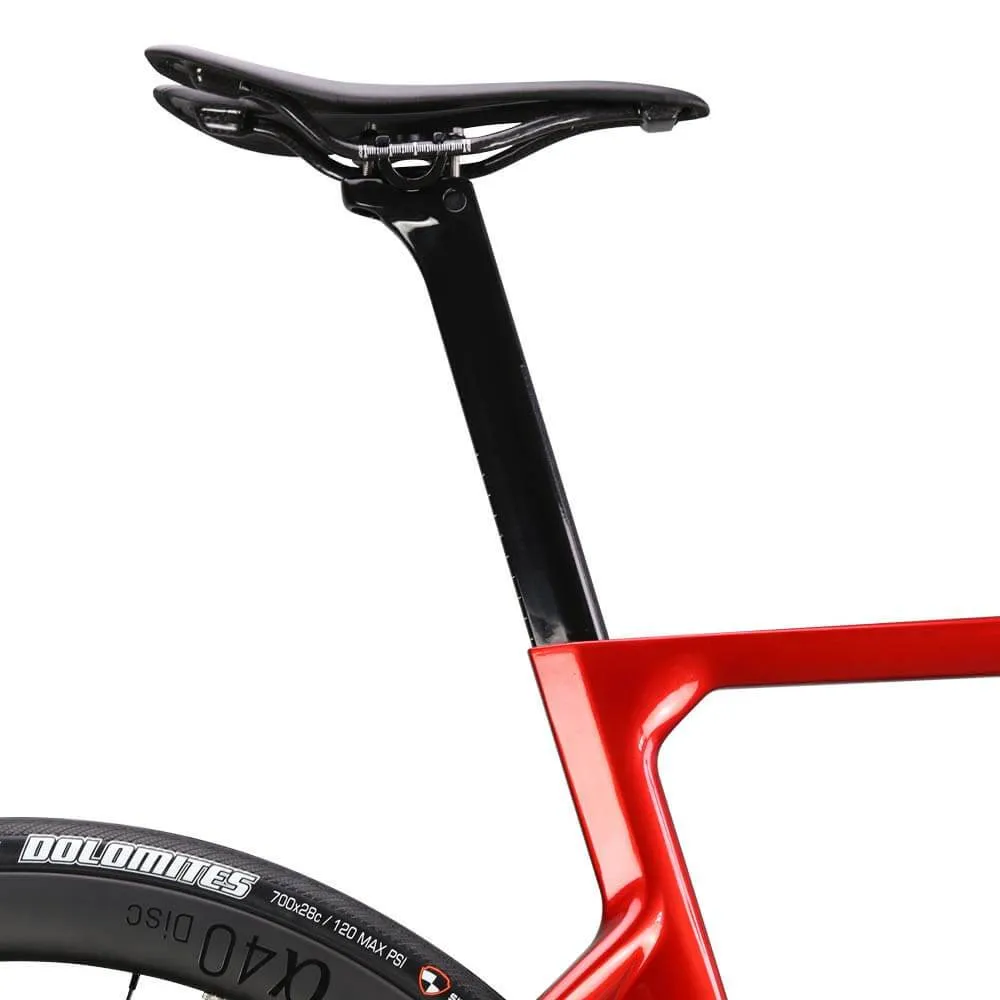

Saddle: Carbon SD006

Complete Bike Weight: 7.6kg (excluding pedal)
