In the box：
Frame；Seat Post；Fork；Front/Rear Thru-axle.

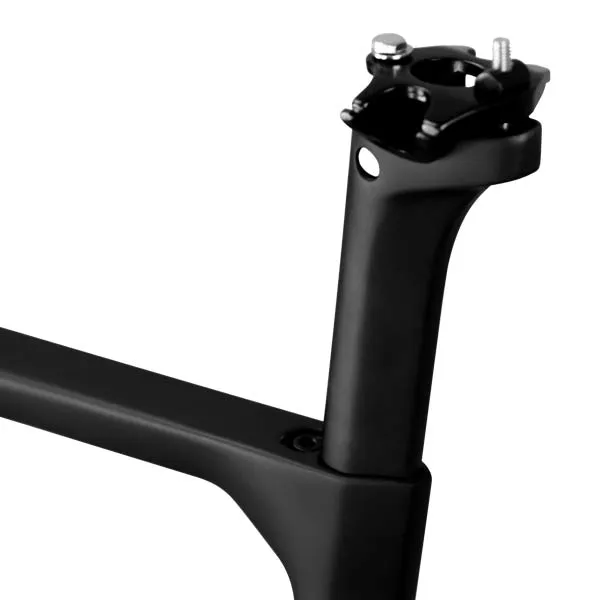

Seat post： 182g
Fork： 390g
Specification

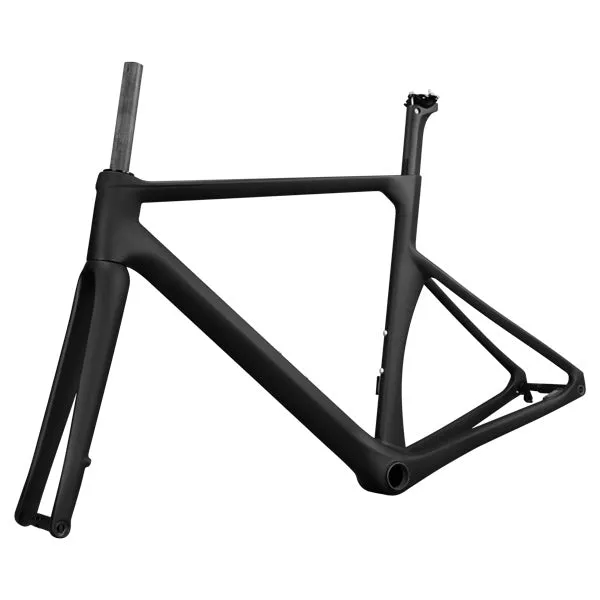

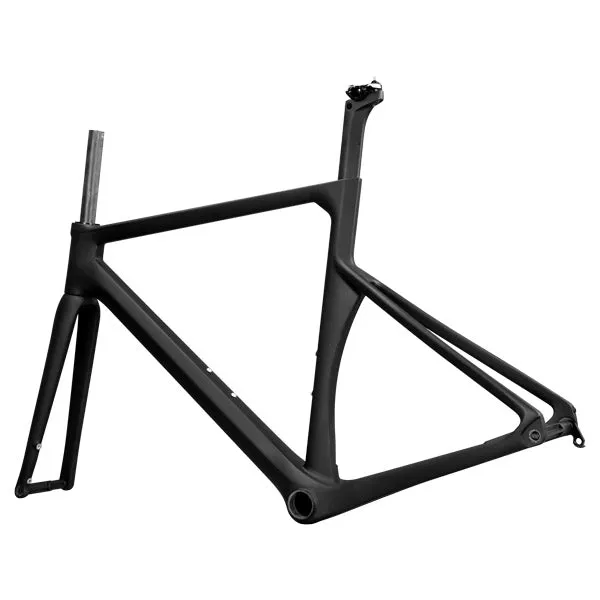

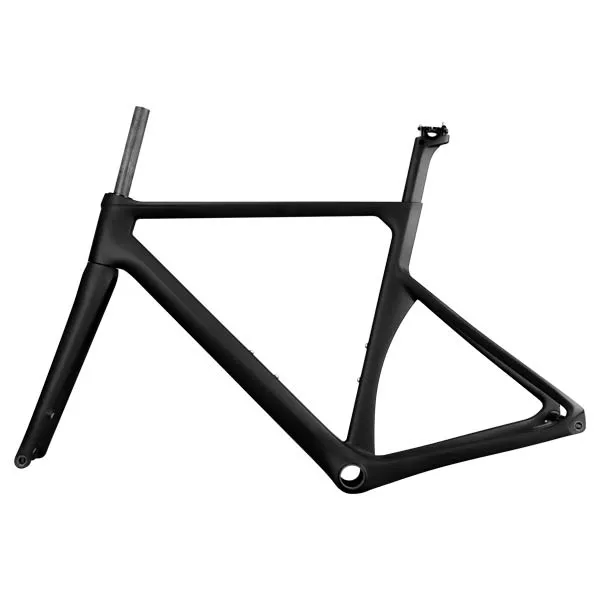

| Type | New Aero Carbon Road Disc Brake Frame |
| Material | Carbon fiber |
| Size | 51/54/57cm |
| Fork | AO22 specify carbon fork |
| Headtube | Straight 1 1/2" head tube |
| Weight | 51cm 1092g 54cm 1115g 57cm 1248g |

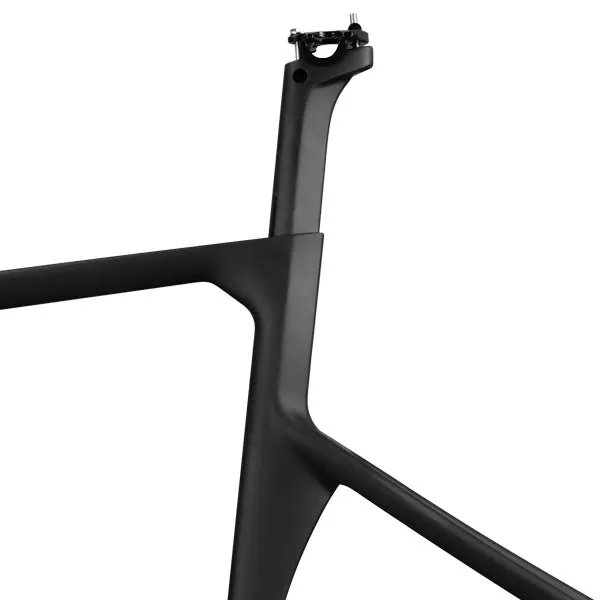

| Seatpost | Adjustable Seatpost |

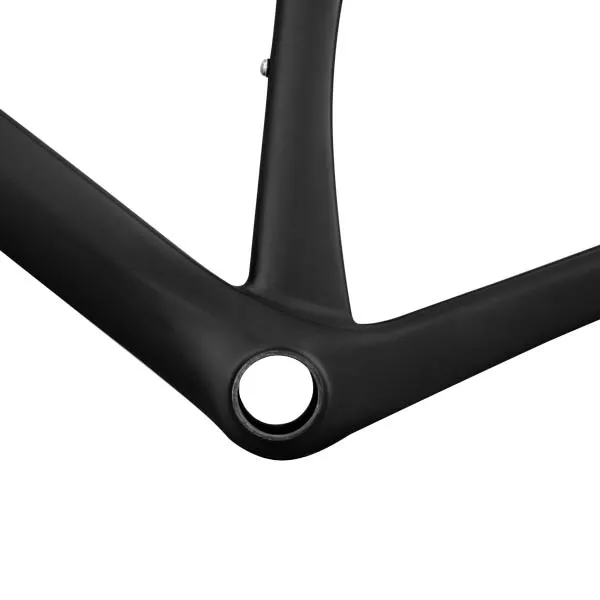

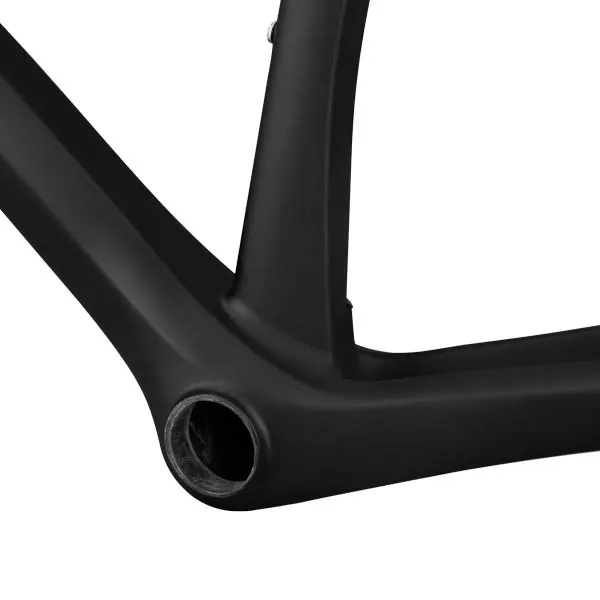

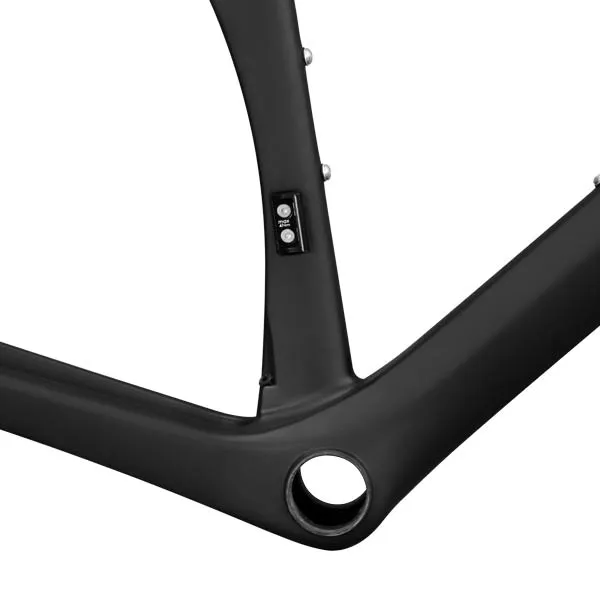

| Bottom bracket | BB86 |
| Max tire clearance | 700*28c |
| Brake mount type | Flat mount Disc brake 140mm |

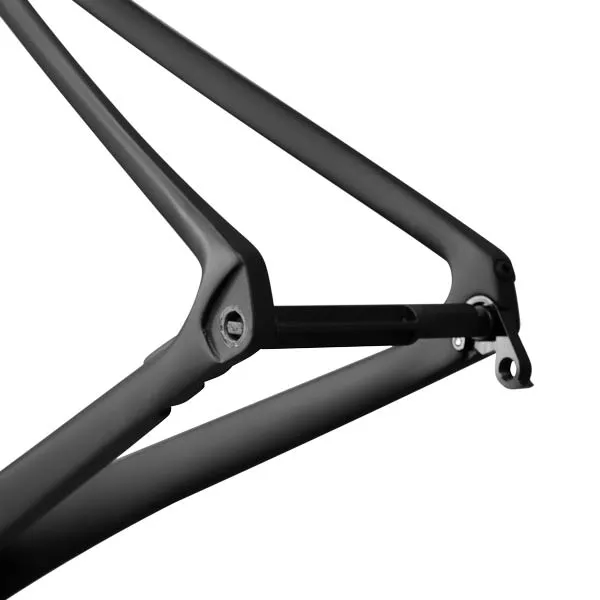

| Dropout | Front 12*100mm thru-axle Rear 12*142mm thru-axle |
| Groupset | Recommended install electronic shifting groupset |
| Handlebar&stem | Compatible with ICAN handlebar HBA22 |
Test Standard | ISO4210 |

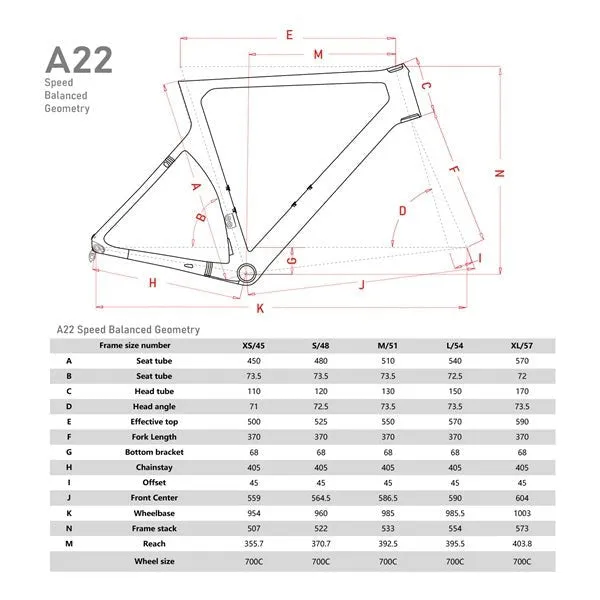

A22 Frame Geometry
Recommended size chart：
